1/2-Ton Electric Chain Hoist 1-Phase 10' Lift | BLVS050-010

Stock Number
JT9-104022

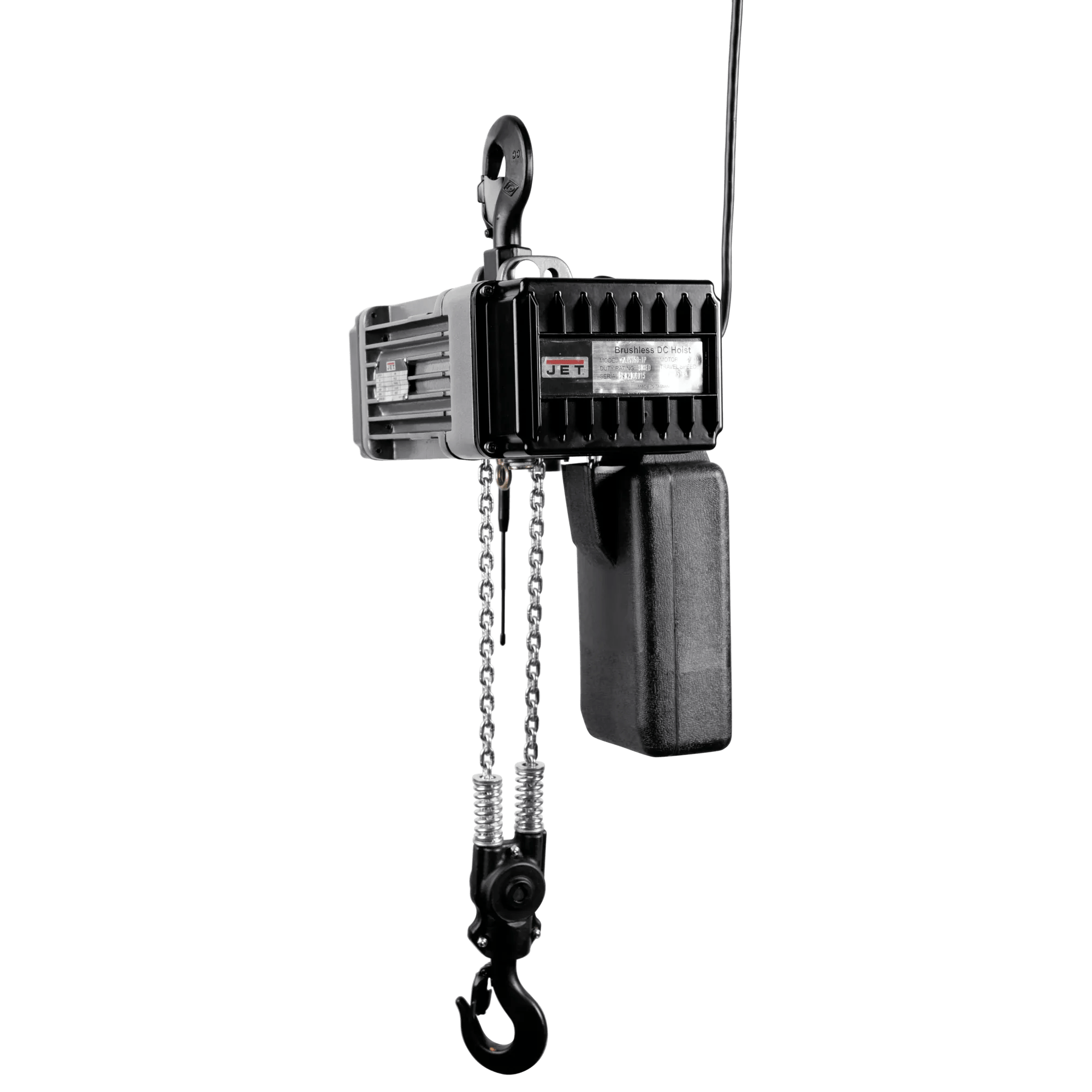

JET BLVS050-010 Trademaster 1/2-Ton Electric Chain Hoist, 10' Lift (104022)

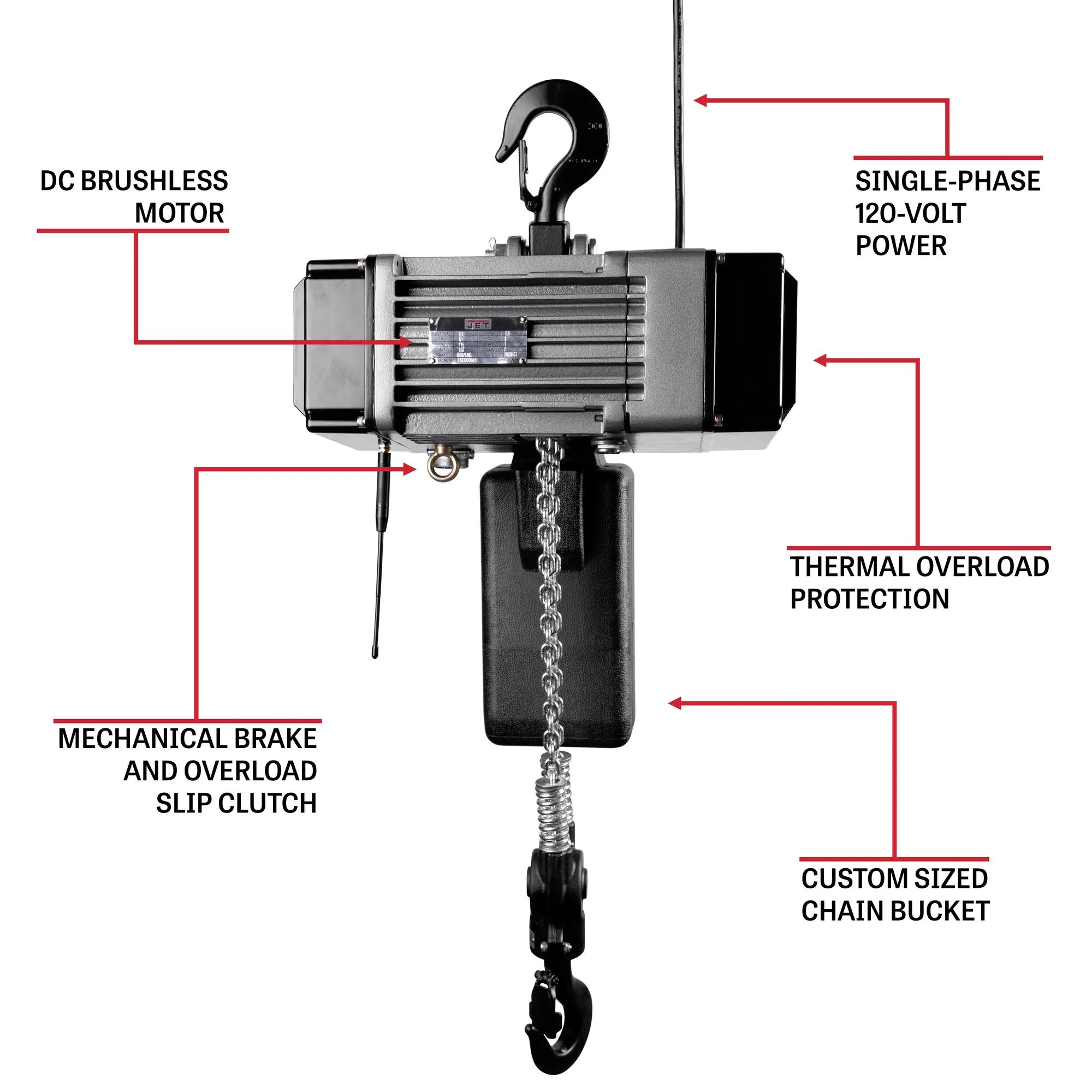

JET® Trademaster® Series electric hoists combines safety, portability, and durability to operate in all your industrial, construction, and transportation applications. With its market leading wireless controller and 2 in 1 mechanical brake and overload slip clutch, safety is most important. With the only DC Brushless motor in the market, 5 pocket chain sheave, and thermal overload protection, you have the durability you need to reduce maintenance costs. All of this with a lightweight compact housing that will get you into those tight areas while allowing you transport it from job to job in its molded carrying case. The Tradesmaster® Series comes in 1/8-Ton to 2-Ton capacities and standard lifts of 10 and 20ft (custom lifts up to 100ft are available).


Comes standard with Wireless Controller that can infinitely adjust speed from creep to 4ft/min with speed dial and max of 41ft/min in high speed
TAA Approved
Single phase 120V plug enables use in all areas and the Permanent Magnet Brushless Motor has the lowest required starting current available at just 10amp.
Overload protection using slip clutch system to protect hoist from loads over rated capacities
DC Brushless motor designed for a longer lifespan than normal Electric Hoist motors reducing maintenance costs
30 / 7.5 Time ratings
Electronic controls have protections on them with 10 failure codes that are shown on wireless pendant for troubleshooting
1/8 to 1/2 ton models come in plastic carry case for exceptional mobility
Low noise at less than 75 dBA
More Information
Stock NumberJT9-104022
Capacity (Lbs.)1100
Duty Cycle (%)30
Duty Cycle RatingH3
Lift (Ft.)10
Lifting Speed (FPM)0-5 / 21
Load Capacity (Tons)1/2
Max. Number of Starts (Per Hr.)180
Max. On Time (Min. / Hr.)30/7.5
Model NumberBLVS050-010
Motor (HP)0.8HP, 120V, 1PH
Motor PhaseSingle
Prop 65Cancer and Reproductive Harm
Warranty2 Year
Weight (Lbs.)42.8
Gross Weight50.0
Net weight43.0
Headroom (In.)19-1/2
Overall Width (In.)10-2/5
Motor Current (Amps)10
Headroom (in.)19-1/2
