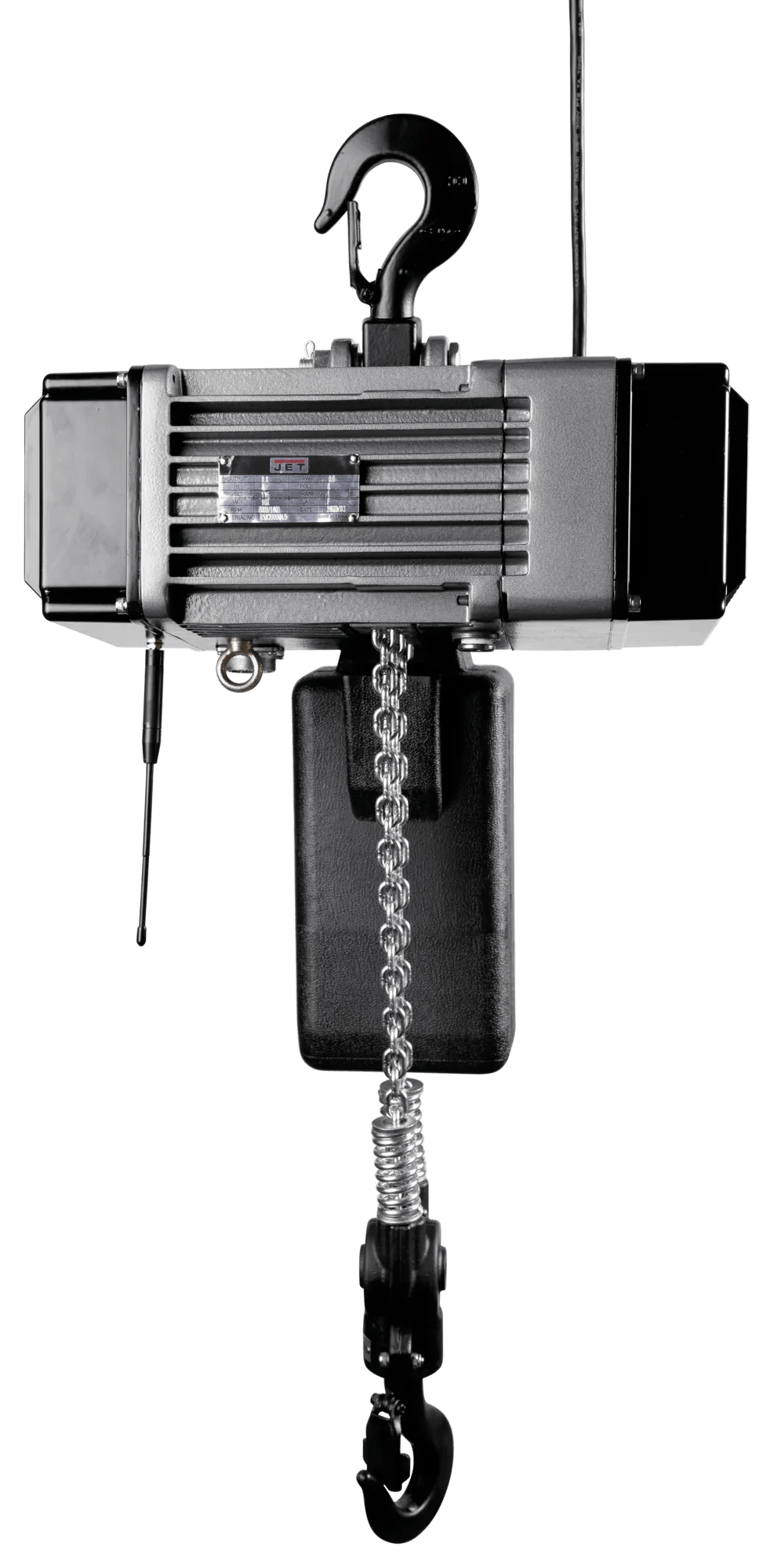

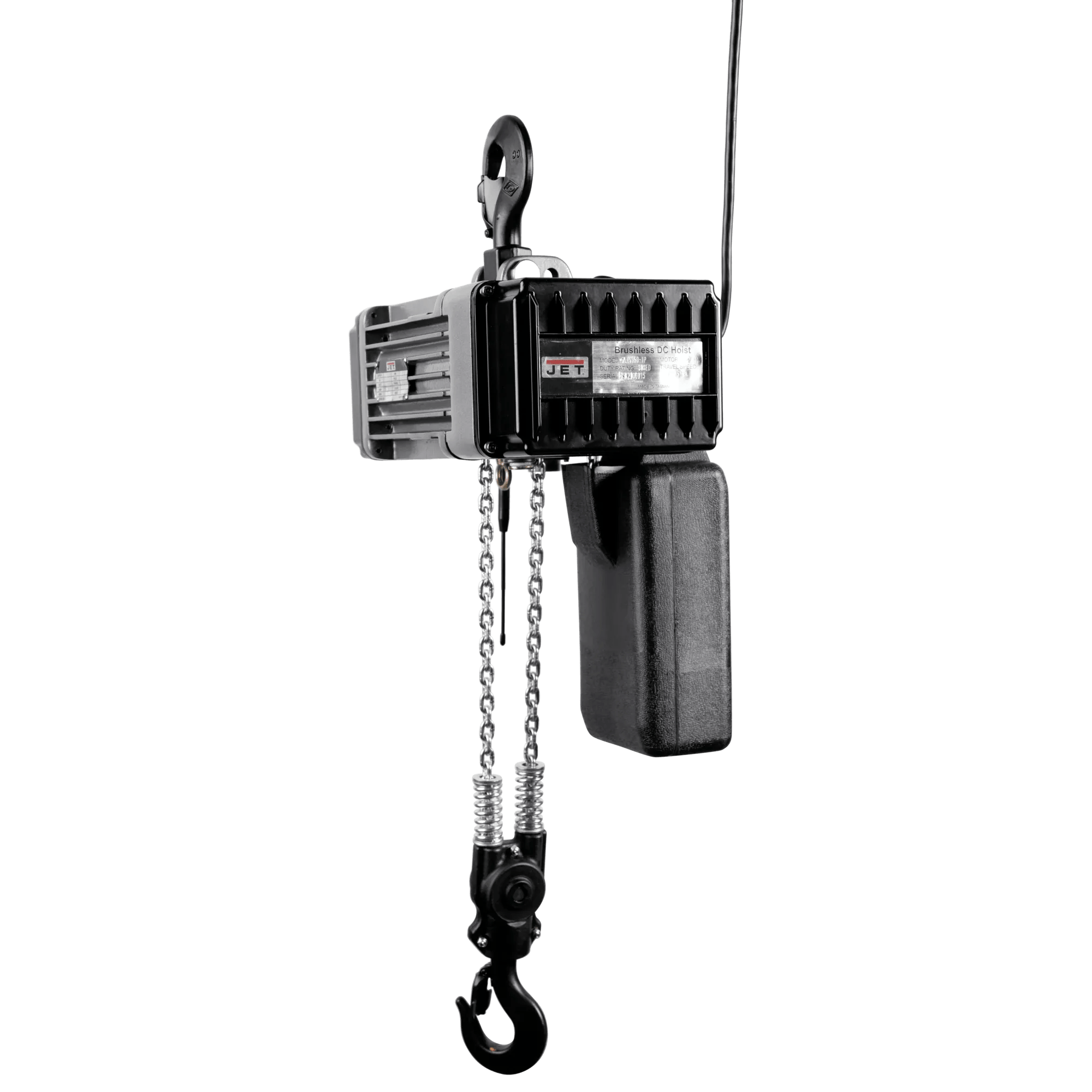

1/8-Ton Electric Chain Hoist 1-Phase 10' Lift | BLVS018-010
JET BLVS018-010 Trademaster 1/8-Ton Electric Chain Hoist, 10' Lift (104000)
Manual

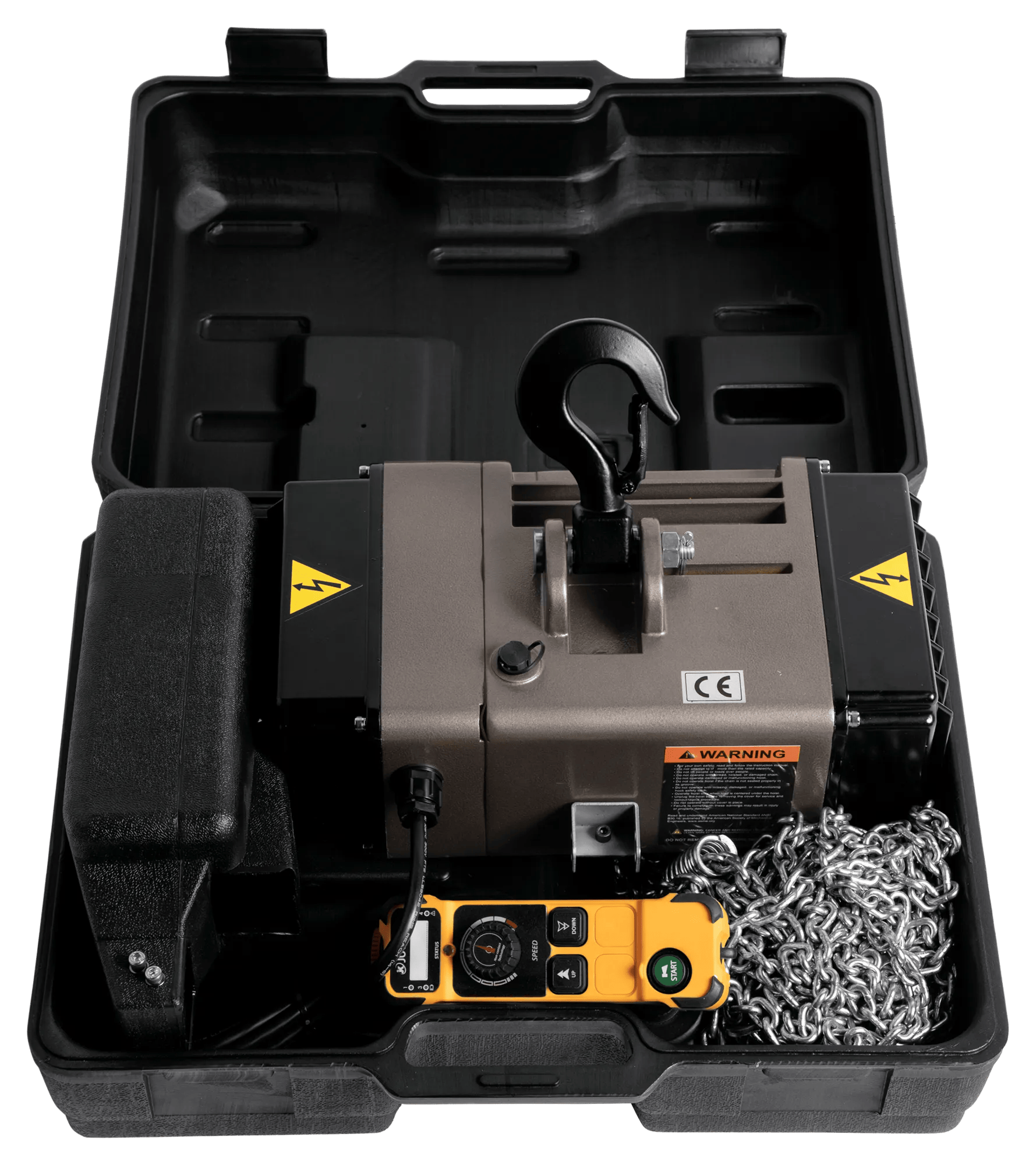

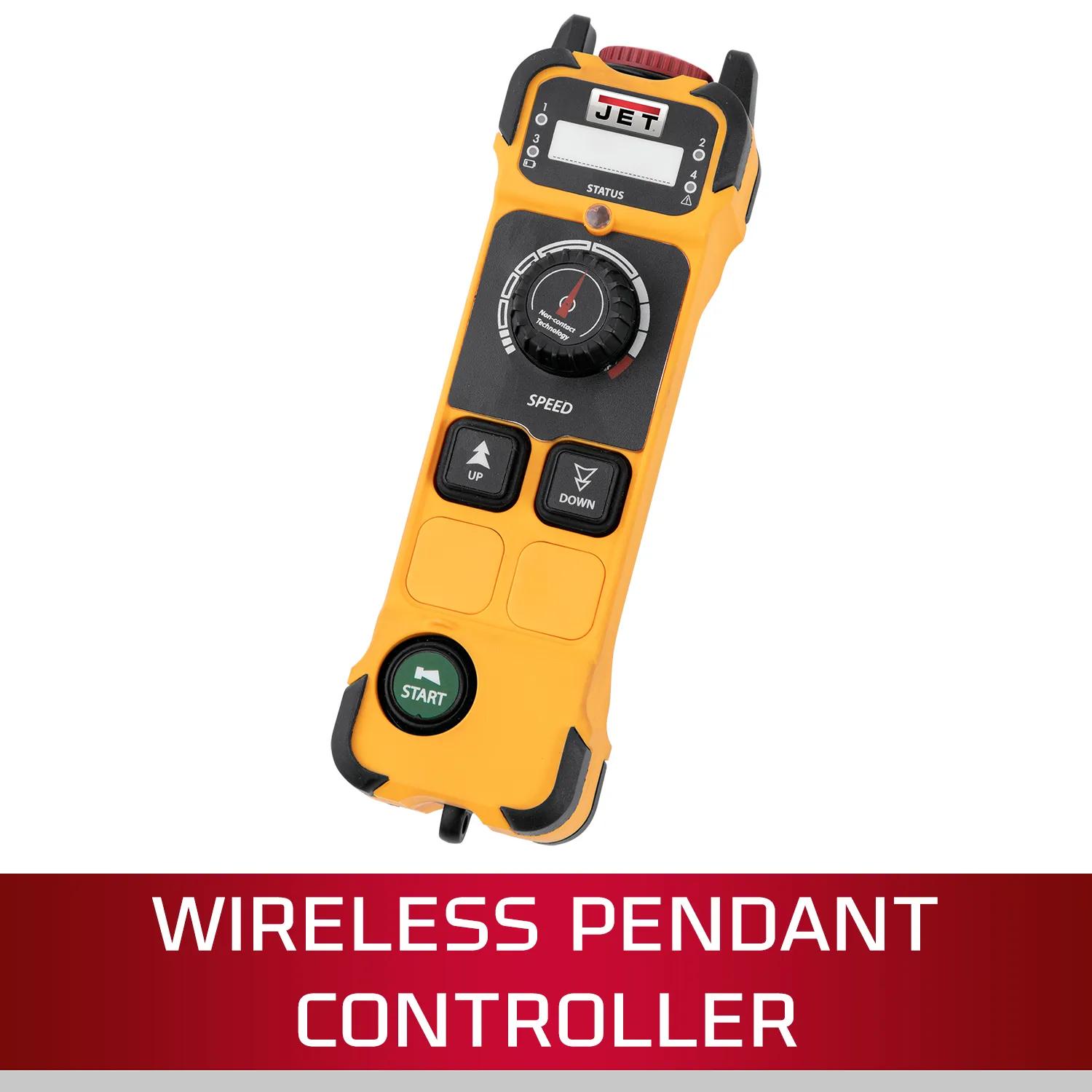

JET Trademaster® Series Electric Hoists combines safety, portability, and durability to operate in all your industrial, construction, and transportation applications. With its market leading wireless controller and 2 in 1 mechanical brake and overload slip clutch, safety is most important. With the only DC Brushless motor in the market, 5 pocket chain sheave, and thermal overload protection, you have the durability you need to reduce maintenance costs. All of this with a lightweight compact housing that will get you into those tight areas while allowing you transport it from job to job in its molded carrying case. The Tradesmaster® Series comes in 1/8-Ton to 2-Ton capacities and standard lifts of 10 and 20ft (custom lifts up to 100ft are available).
| Stock Number | JT9-104000 |
|---|---|
| Capacity (Lbs.) | 265 |
| Duty Cycle (%) | 30 |
| Duty Cycle Rating | H3 |
| Lift (Ft.) | 10 |
| Lifting Speed (FPM) | 0-15 / 41 |
| Load Capacity (Tons) | 1/8 |
| Max. Number of Starts (Per Hr.) | 180 |
| Max. On Time (Min. / Hr.) | 15 |
| Model Number | BLVS018-010 |
| Motor (HP) | 0.4HP, 120V, 1PH |
| Motor Phase | Single |
| Prop 65 | Cancer and Reproductive Harm |
| Warranty | 2 Year |
| Weight (Lbs.) | 36 |
| Gross Weight | 44.0 |
| Net weight | 36.0 |
| Headroom (In.) | 15-3/4 |
| Overall Width (In.) | 10-2/5 |
| Motor Current (Amps) | 6 |
| Headroom (in.) | 15-3/4 |
