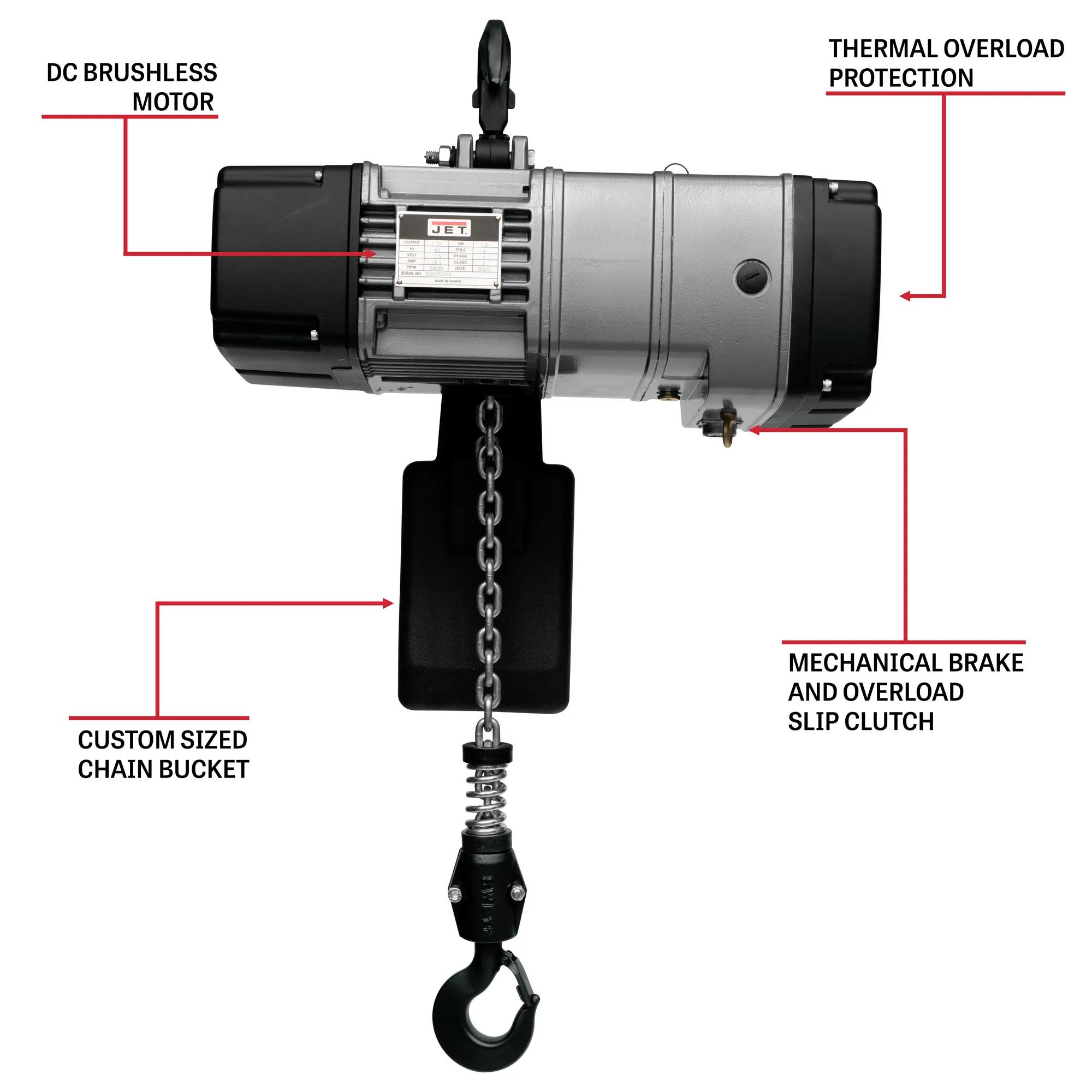

JET Trademaster® Series Electric Hoists combines safety, portability, and durability to operate in all your industrial, construction, and transportation applications. With its market leading wireless controller and 2 in 1 mechanical brake and overload slip clutch, safety is most important. With the only DC Brushless motor in the market, 5 pocket chain sheave, and thermal overload protection, you have the durability you need to reduce maintenance costs. All of this with a lightweight compact housing that will get you into those tight areas while allowing you transport it from job to job in its molded carrying case. The Tradesmaster® Series comes in 1/8-Ton to 2-Ton capacities and standard lifts of 10 and 20ft (custom lifts up to 100ft are available).

Features

Comes standard with Wireless Controller that can infinitely adjust speed from creep to 4ft/min with speed dial and max of 41ft/min in high speed

TAA Approved

Single phase 120V plug enables use in all areas and the Permanent Magnet Brushless Motor has the lowest required starting current available at just 10amp.

Overload protection using slip clutch system to protect hoist from loads over rated capacities

DC Brushless motor designed for a longer lifespan than normal Electric Hoist motors reducing maintenance costs

30 / 7.5 Time ratings

Electronic controls have protections on them with 10 failure codes that are shown on wireless pendant for troubleshooting

Specifications

More Information
Stock Number	JT9-104033
Capacity (Lbs.)	2200
Duty Cycle (%)	30
Duty Cycle Rating	H3
Lift (Ft.)	10
Lifting Speed (FPM)	0 -4 / 18
Load Capacity (Tons)	1
Max. Number of Starts (Per Hr.)	180
Max. On Time (Min. / Hr.)	30/7.5
Model Number	BLVS100-010
Motor (HP)	1.33HP, 110V 60Hz
Motor Phase	Single
Prop 65	Cancer and Reproductive Harm
Warranty	2 Year
Weight (Lbs.)	118
Gross Weight	173.0
Net weight	118.0
Headroom (In.)	20-3/4
Overall Width (In.)	15-3/10
Motor Current (Amps)	15
Headroom (in.)	20-3/4

Reviews

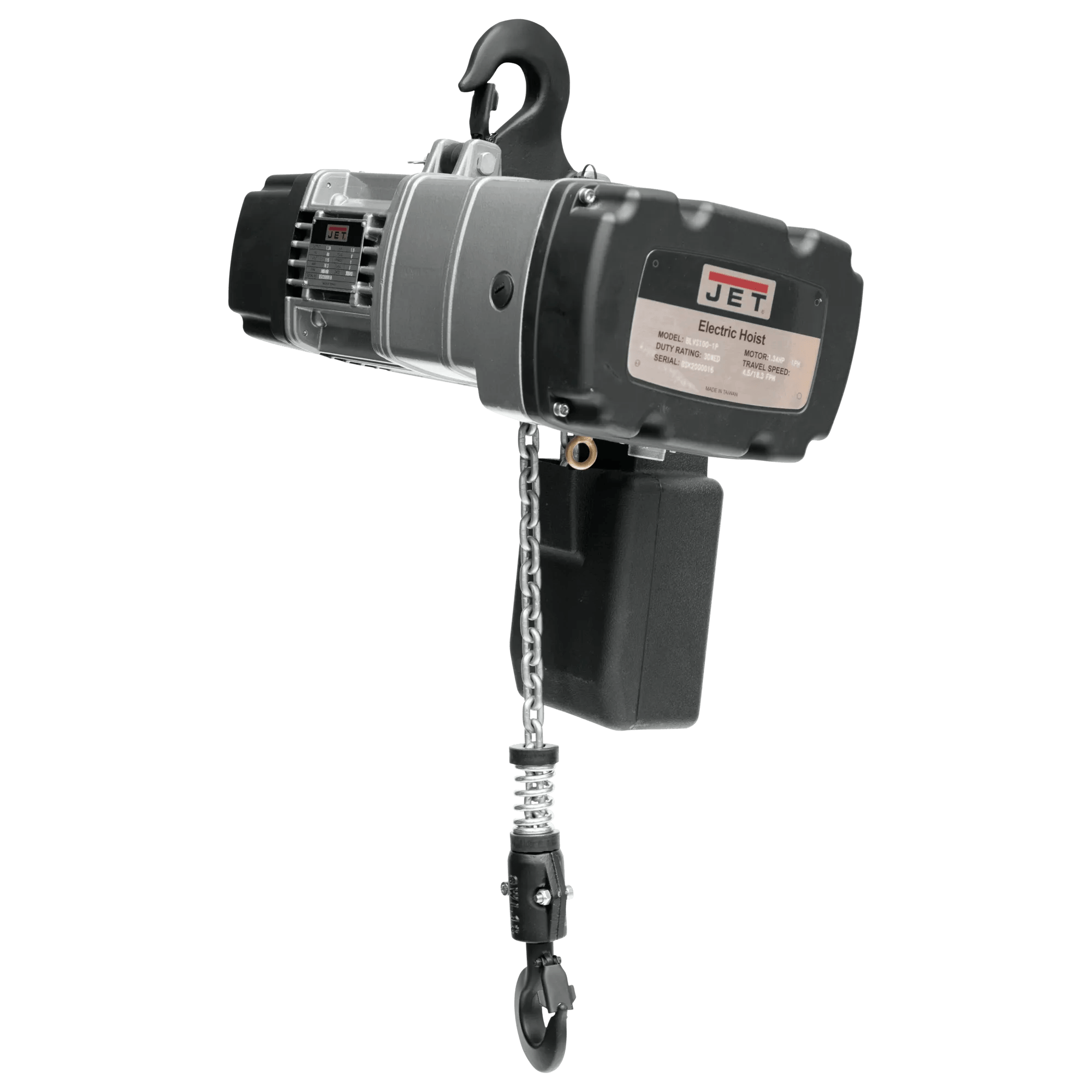

1-Ton Electric Chain Hoist 1-Phase 10' Lift | BLVS100-010
