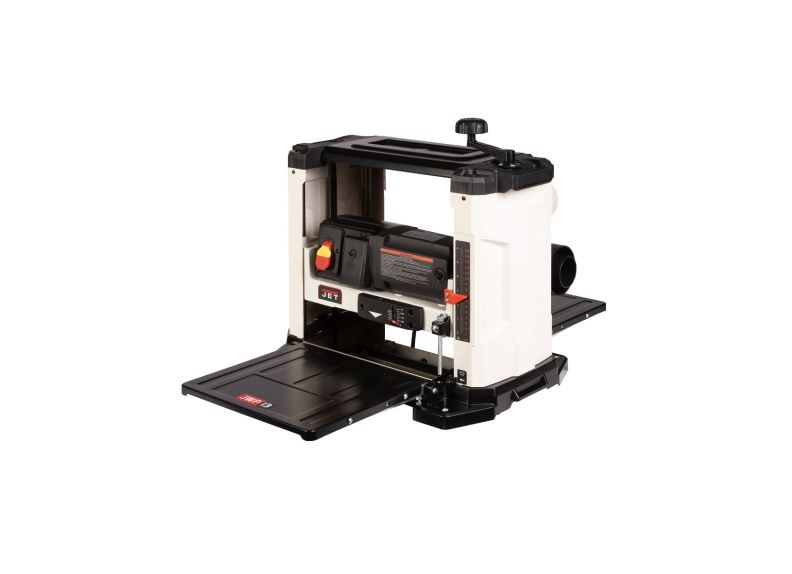

13" Benchtop Helical Head Planer (JWP-13BTHH)
Stock Number:
JT1-2989
COMING MID-JUNE
Enhanced Bullet 1:
Helical Head. Superior Surface. Done.
Enhanced Bullet 2:
30 Carbide Inserts. Built to Last.
Enhanced Bullet 3:
2HP Motor on Standard 120V Circuits
Enhanced Bullet 4:
Full 13" Capacity. One Person Portable.
The new JET 13-inch Benchtop Helical Head Planer is designed for woodworkers who prioritize finish quality, reduced noise, and long-term cutting efficiency. With a full 13-inch planing capacity, it handles wide stock while maintaining a compact benchtop footprint. The true helical cutterhead uses 30 individually indexed carbide inserts that shear wood fibers for a cleaner surface, quieter operation, and extended edge life. Each insert can be rotated or replaced as needed to maintain consistent results without the cost of full knife replacements. A 2HP, 120-volt motor drives the cutterhead at 9,500 RPM, delivering smooth, controlled cuts on standard household power. Folding infeed and outfeed tables improve material support, a depth stop preset enables fast, repeatable setups, and the dual-size dust port connects to 2‑1/2-inch or 4-inch hoses. One-person portability and vertical storage capability make it easy to transport and store when space is limited.
13-inch Planing Capacity - Handles full width stock in a compact benchtop footprint
2 HP Motor, 120V Power- Strong cutting performance on standard household circuits
One Person Portable Design - Easy to move, transport, and reposition in the shop
Depth Stop Preset - Quick, repeatable thickness settings with consistent results
Folding Infeed and Outfeed Tables - Supports longer boards and folds away for storage
True Helical Cutterhead - Quieter operation, longer edge life, and improved surface finish
Vertical Storage Capability - Saves bench and floor space when not in use
Dual Size Dust Port - Connects easily to 2-1/2-inch and 4-inch dust collection hoses
5 Year Warranty - Confidence backed by long term coverage
| Stock Number | JT1-2989 |
|---|---|
| Adjustable Depth Stop | 6 in. |
| Cutterhead Diameter (In.) | 1.8 in |
| Cutterhead Speed (RPM) | 9,500 RPM |
| Dust Port Size (In.) | 2-1/2 or 4 in. |
| Dust Collection Minimum CFM Required (CFM) | 550 |
| Feed Rate (FPM) | 24.6 FPM |
| Maximum Depth of Cut (In.) | 1/8" |
| Maximum Full Width Depth of Cut (In.) | 1/16 in. |
| Maximum Planing Thickness (In.) | 6 |
| Input Power | 120V |
| Motor Amps | 15 |
| Motor Phase | Single |
| Motor Power (HP) | 2 |
| Motor Voltage (V.) | 120 |
| Number of Knives | 3 |
| Number of Speeds | Single |
| Outfeed Table Length (In.) | 11.8 in. |
| Prewired Voltage (V.) | 120 |
| Prop 65 | Cancer and Reproductive Harm |
| Recommended Circuit Size (Amps.) | 20 |
| Style (Type) | Benchtop |
| Table Size (L x W) (In.) | 13 in. x 12 in. |
| Type of Cutterhead | Straight Knife |
| Warranty | 5 Year |
| Gross Weight | 71 |
| Net Weight | 66 |
