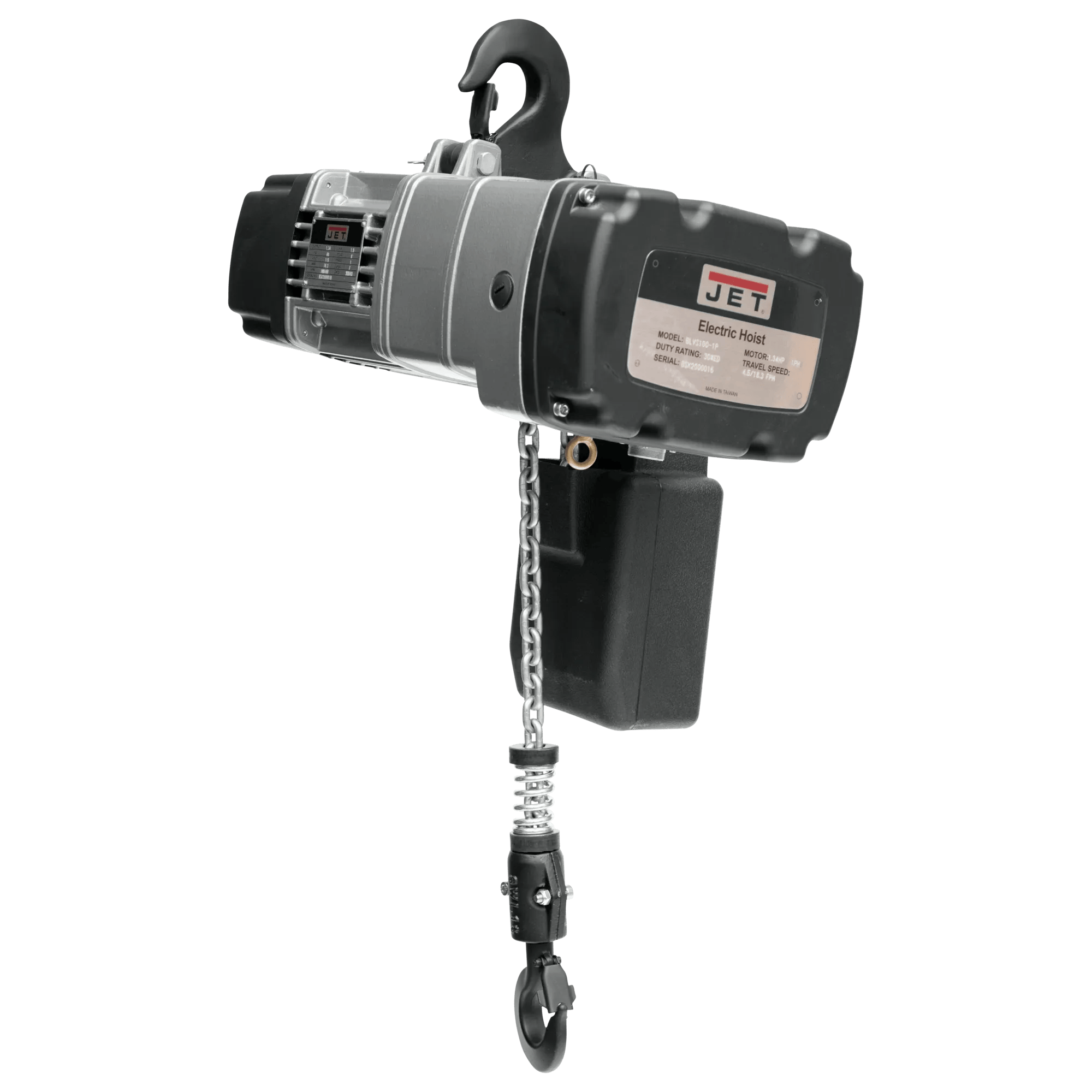

2-Ton Electric Chain Hoist 1-Phase 20' Lift | BLVS200-020
BLVS200-020 2Ton 20' Lift Electric Hoist,120V
Manual

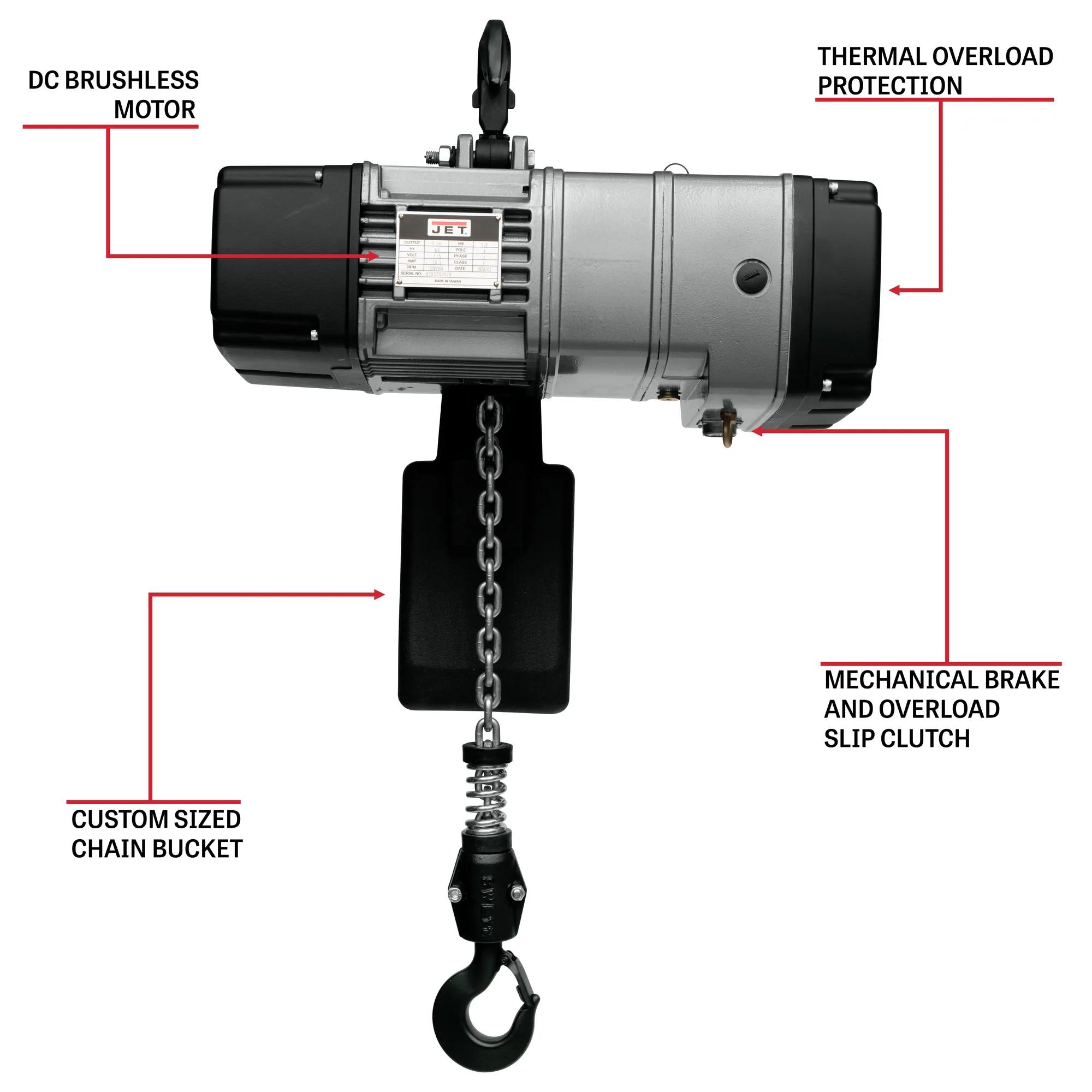

JET Trademaster® Series Electric Hoists combines safety, portability, and durability to operate in all your industrial, construction, and transportation applications. With its market leading wireless controller and 2 in 1 mechanical brake and overload slip clutch, safety is most important. With the only DC Brushless motor in the market, 5 pocket chain sheave, and thermal overload protection, you have the durability you need to reduce maintenance costs. All of this with a lightweight compact housing that will get you into those tight areas while allowing you transport it from job to job in its molded carrying case. The Tradesmaster® Series comes in 1/8-Ton to 2-Ton capacities and standard lifts of 10 and 20ft (custom lifts up to 100ft are available).
| Stock Number | JT9-104046 |
|---|---|
| Capacity (Lbs.) | 4400 |
| Duty Cycle (%) | 30 |
| Duty Cycle Rating | H3 |
| Lift (Ft.) | 20 |
| Lifting Speed (FPM) | 0-2.2 / 9 |
| Load Capacity (Tons) | 2 |
| Max. Number of Starts (Per Hr.) | 180 |
| Max. On Time (Min. / Hr.) | 30/7.5 |
| Model Number | BLVS200-020 |
| Motor (HP) | 1.33HP, 110V 60Hz |
| Motor Phase | Single |
| Prop 65 | Cancer and Reproductive Harm |
| Warranty | 2 Year |
| Weight (Lbs.) | 153 |
| Gross Weight | 208.0 |
| Net weight | 153.0 |
| Headroom (In.) | 24-1/2 |
| Overall Width (In.) | 14-1/2 |
| Motor Current (Amps) | 15 |
| Headroom (in.) | 24-1/2 |
