2-Ton Hand Chain Hoist with 15' Lift | S90-200-15
Stock Number:
JT9-101931

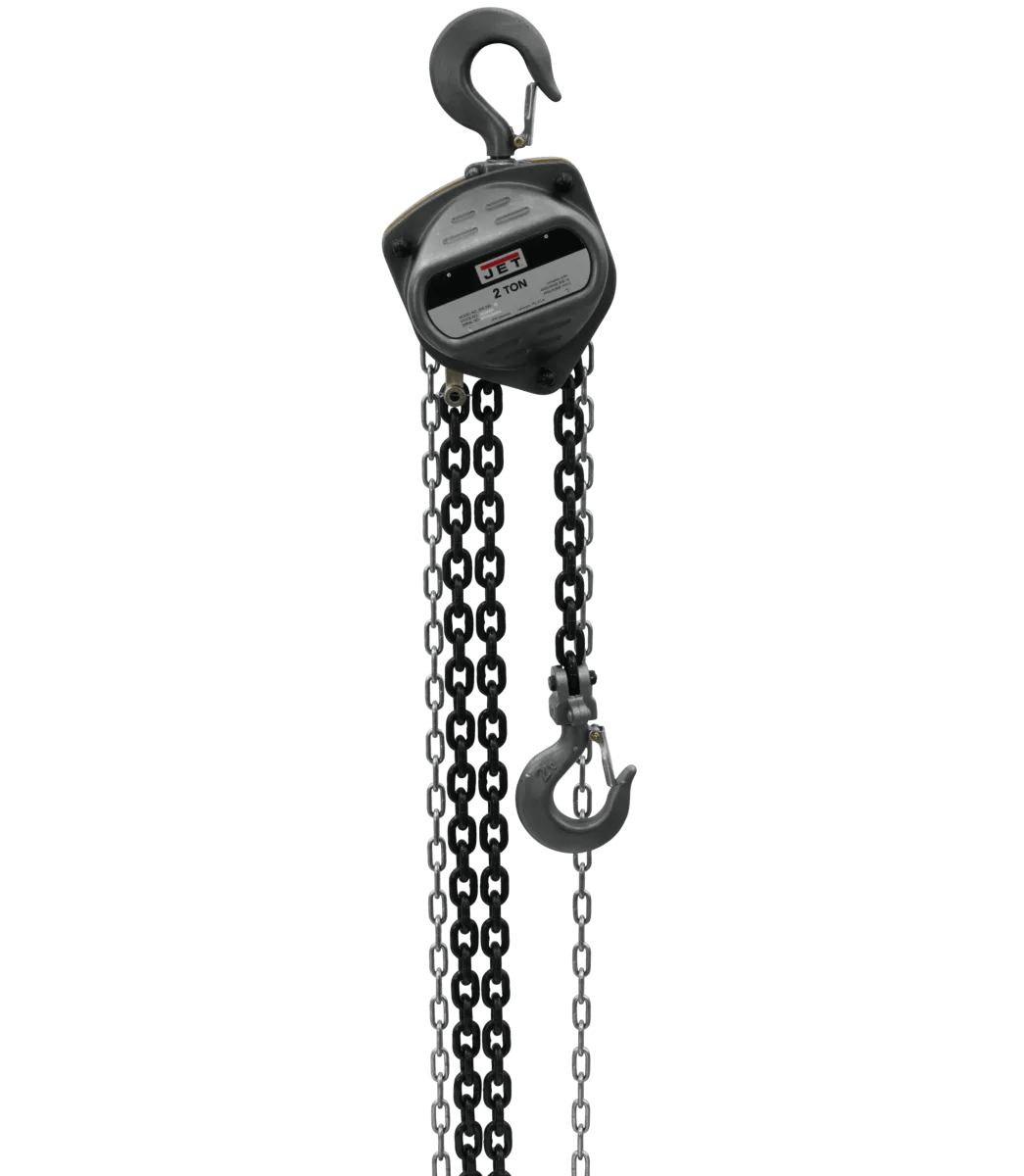

S90-200-15, 2-Ton Hand Chain Hoist With 15' Lift
Manual
JET® S90 Series Hand Chain Hoists were designed with all steel construction and ensure reliability and durability to perform in light-duty industrial applications. Easily maintained and serviced, the JET® S90 is available in capacities from ½ ton to 10 ton and standard lifts of 10, 15, 20, and 30 feet (custom lifts available). The JET® S90 is the ideal contractor grade hoist.
Grade 80 black oxide coated load chain for added durability
Heat Treated Load Plates
Industrial rated alloy steel hooks rotate 360 degrees for easy rigging and slowly stretch to indicate an overload situation
Intended for the harshest environments, the heat treated load plates and case hardened corrosive resistant internal parts extend the life of the hoist
Needle bearings support the load sheave to increase efficiency and promote smooth operation
Secured with Allen screws and lock nuts, the cast-steel safety latches are more durable than stamped steel latches and will not bend out of compliance with lifting regulations
The smaller body and lightweight design are ideal for confined areas and low headroom applications
The Weston style double ratchet pawl brake design splits the load to opposite sides of the ratchet gear for greater load security and increased safety
| Stock Number | JT9-101931 |
|---|---|
| Hand Chain To Lift Load 1 ft. | 71 |
| Capacity (Lbs.) | 4400 |
| Lift (Ft.) | 15 |
| Load Capacity (Tons) | 2 |
| Load Chain Dimensions dia/mm) | 8 X 24 |
| Model Number | S90-200-15 |
| Prop 65 | Cancer and Reproductive Harm |
| Warranty | Lifetime |
| Weight (Lbs.) | 60 |
| Lbs. of Pull to Lift Capacity | 91.0000 |
| Gross Weight | 55.0 |
| Net weight | 53.0 |
| Headroom (In.) | 17-1/2 |
