JBC-2, 2-Ton Beam Clamp
Stock Number:
JT9-252720
JET JBC-2 2-Ton Beam Clamp (252720)
Manual

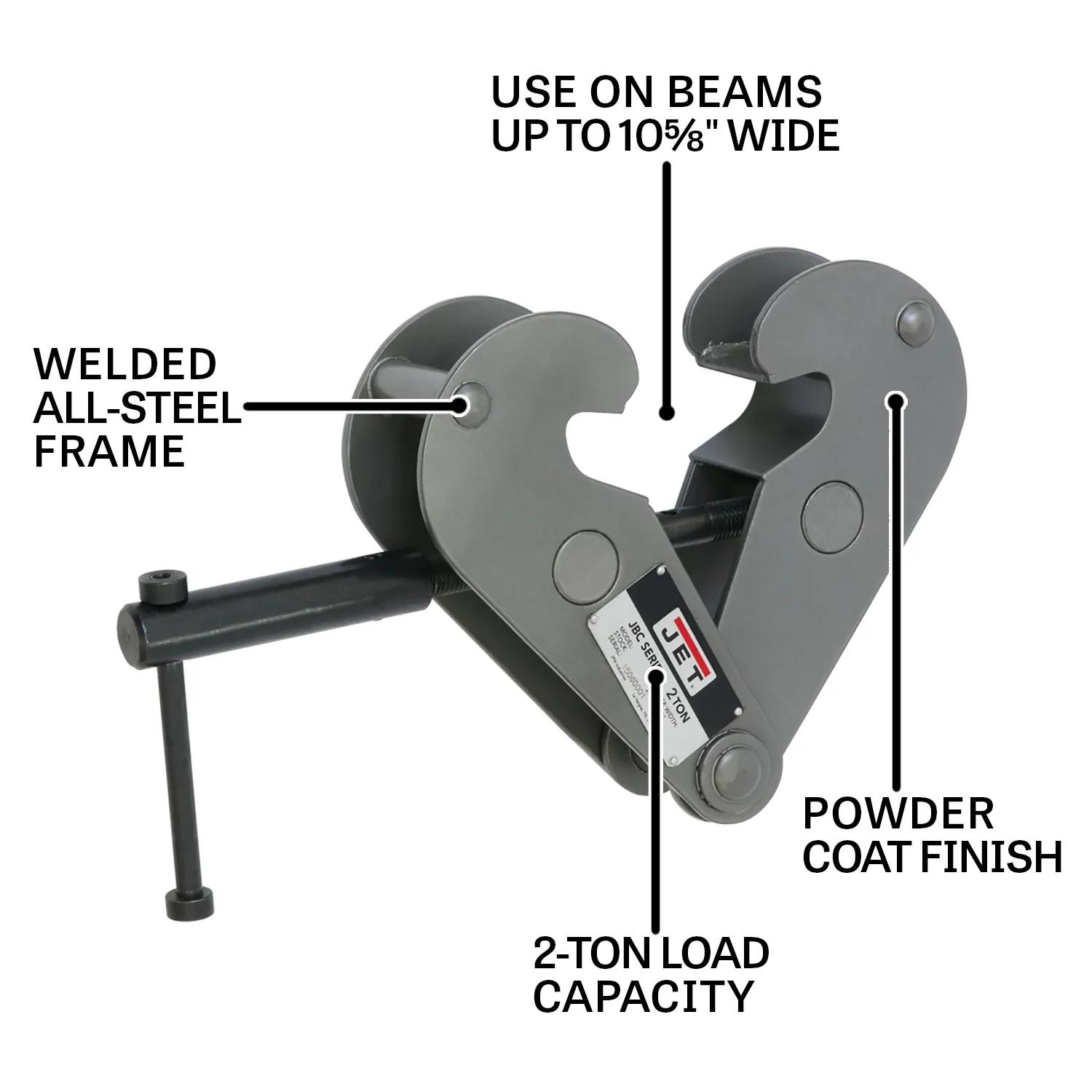

JET JBC Series features a more robust construction for increased durability and longer life in demanding industrial environments. The JBC Series Beam Clamps come in capacities from 1 ton to 5 tons and can accommodate a beam up to 10 inches wide. Each JET Beam Clamp Jaw is designed to distribute the load away from the beam flange and adjusts easily for a wide range of standard H or I beams.
Clamp jaw is designed to distribute the load away from the beam flange edge
Clamp jaw is designed to distribute the load away from the beam flange edge, increasing safety
Complies with ANSI / ASME B30.17 and B30.20 standards
Larger, thicker diameter pins for increased durability and life
Load tested to 125% of capacity with certificate
Robust construction for increased durability and longer life in demanding industrial environments
Used for quick mounting of a hoist on a broad range of beams up to 10-5/8 inches wide for increased versatility
Welded all-steel frame and powder coat finish
Welded all-steel frame and powder coat finish provide maximum durability and protection
Welded, enclosed pockets provide greater stability and durability where the beam clamp attaches to the beam/structure
| Stock Number | JT9-252720 |
|---|---|
| Capacity (Lbs.) | 4400 |
| Load Capacity (Metric Tons) | 2 |
| Load Capacity (Tons) | 2 |
| Maximum Beam Flange Width (In.) | 8-2/3 |
| Minimum Beam Flange Width (In.) | 3 |
| Model Number | JBC-2 |
| Prop 65 | Cancer and Reproductive Harm |
| Warranty | 2 Year |
| Weight (Lbs.) | 14 |
| Gross Weight | 11.35 |
| Net weight | 11.35 |
