JHJ-12-1/2L, 12-1/2-Ton Low Profile Hydraulic Bottle Jack
Stock Number:
JT9-453313K
JHJ-12-1/2L, 12-1/2 Ton, Low Profile, (2 pcs)
Manual
JET®JHJ Series Hydraulic Bottle Jacks have capacities from 2 to 100 tons, and are available in standard and low profile heights. The pump piston and ram are chrome plated for added corrosive resistance increasing durability. Each JHJ model functions in upright, angled or horizontal positions for increased versatility. JET JHJ Series Hydraulic Bottle Jacks comply with ANSI/ASME B30.1 and PALD-1 standards.
Complies with ANSI/ASME B30.1 and PALD-1 Standard
Heavy-duty bases are electrically welded providing a stable platform
Hydraulic system is protected from damage by internal by-pass mechanism
Industrial-duty construction permits use in extreme climates
Lifting, pushing, spreading, bending, pressing or straightening capabilities
Operating temperature range from -4°F to 158°F
Precision machined and polished cylinders provide non-abrasive, leak-free,
Precision machined and polished cylinders provide non-abrasive, leak-free, durable performance

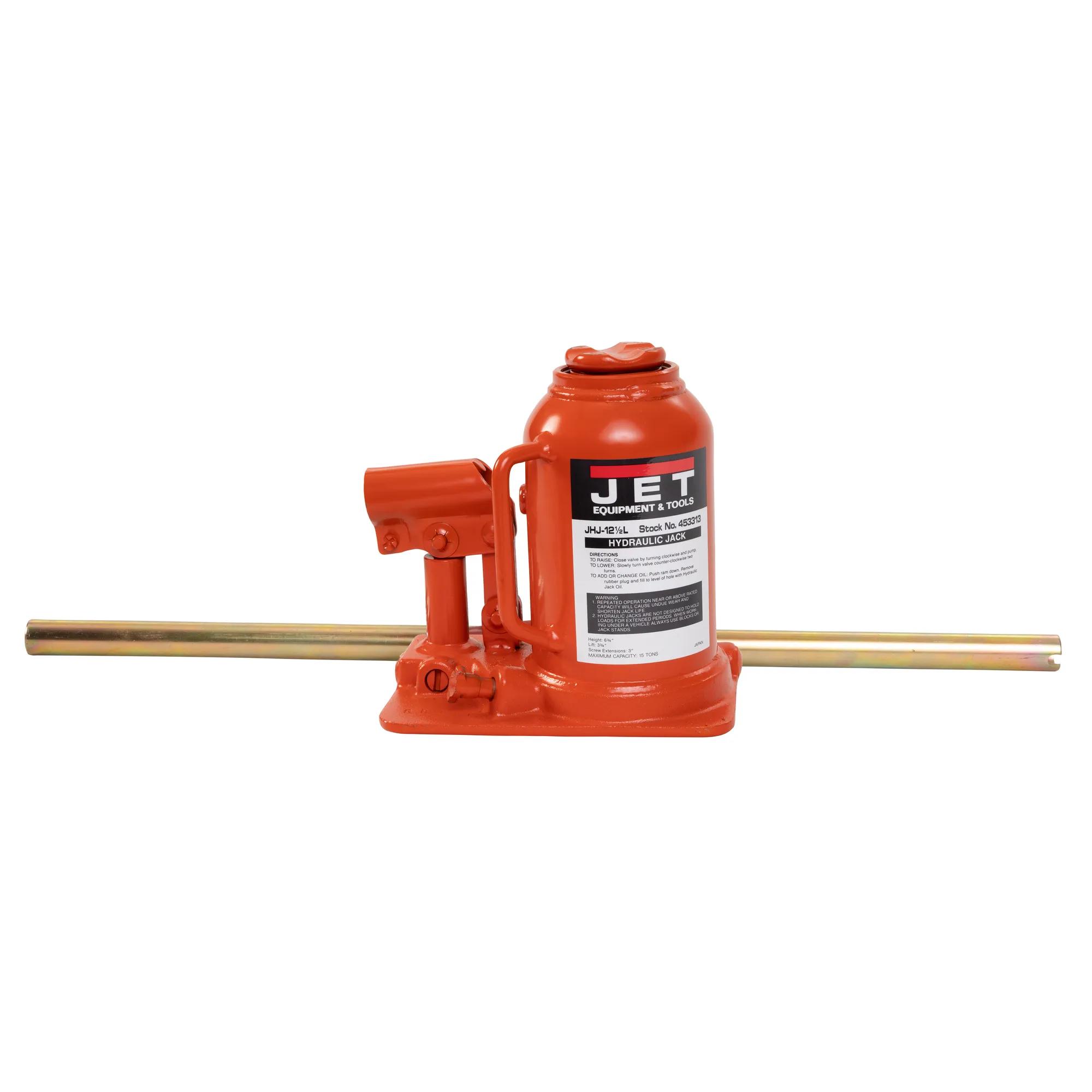

Pump handle included
Upright, horizontal or angled operating positions increase versatility
| Stock Number | JT9-453313K |
|---|---|
| Base Dimensions (L x W) (In.) | 6-1/2 x 4-1/8 |

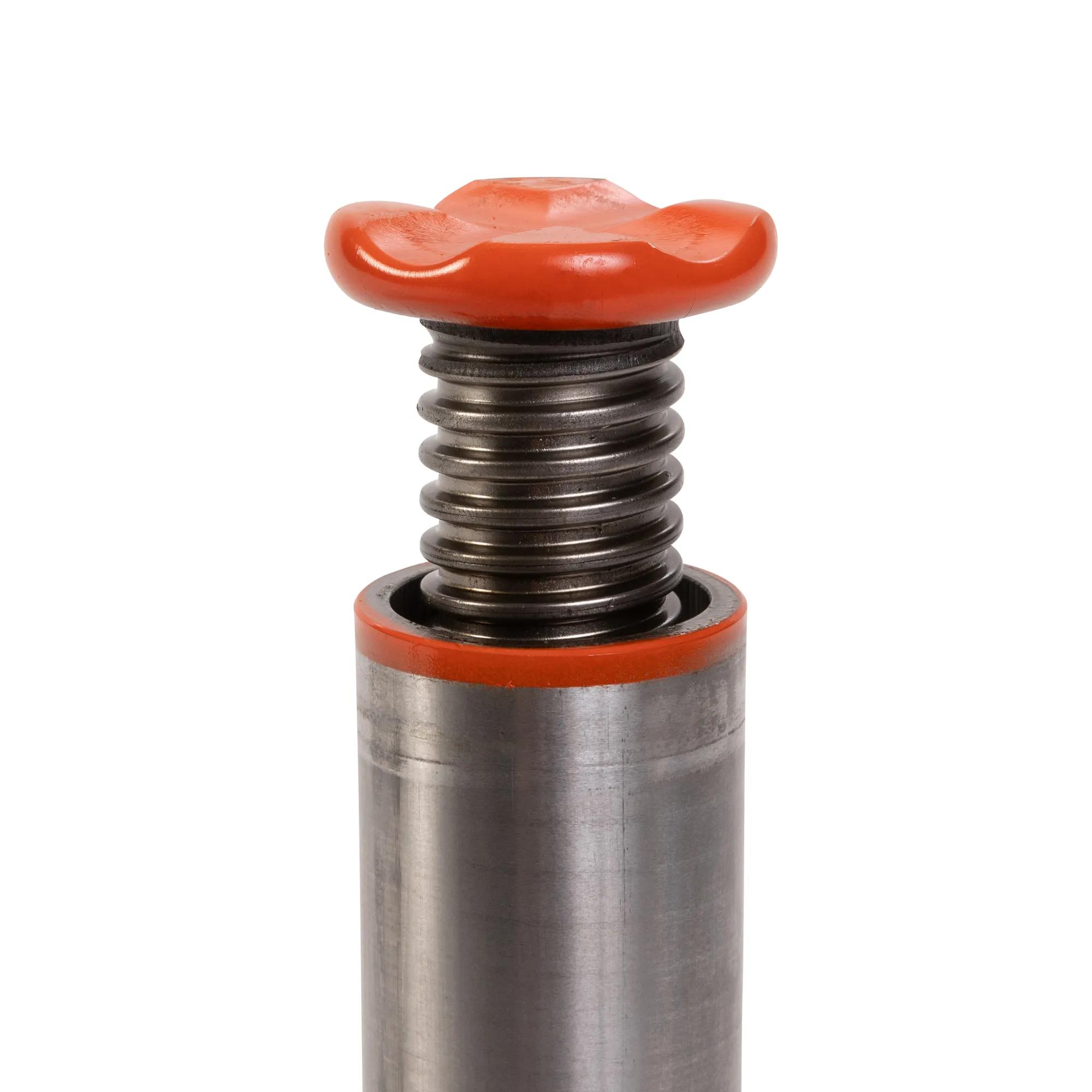

| Head Diameter (In.) | 3 |
| Load Capacity (Tons) | 12-1/2 |

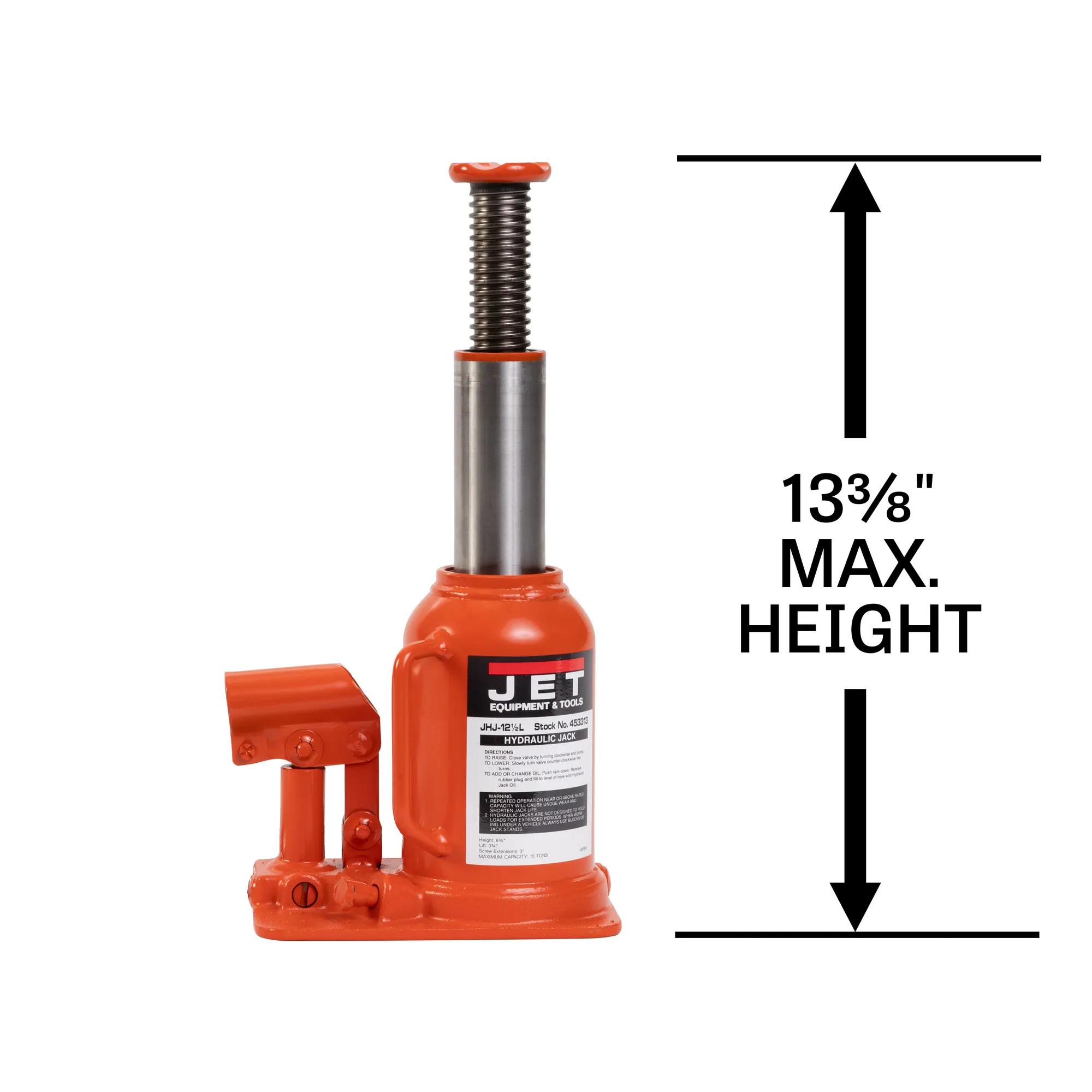

| Maximum Height (In.) | 13-3/8 |

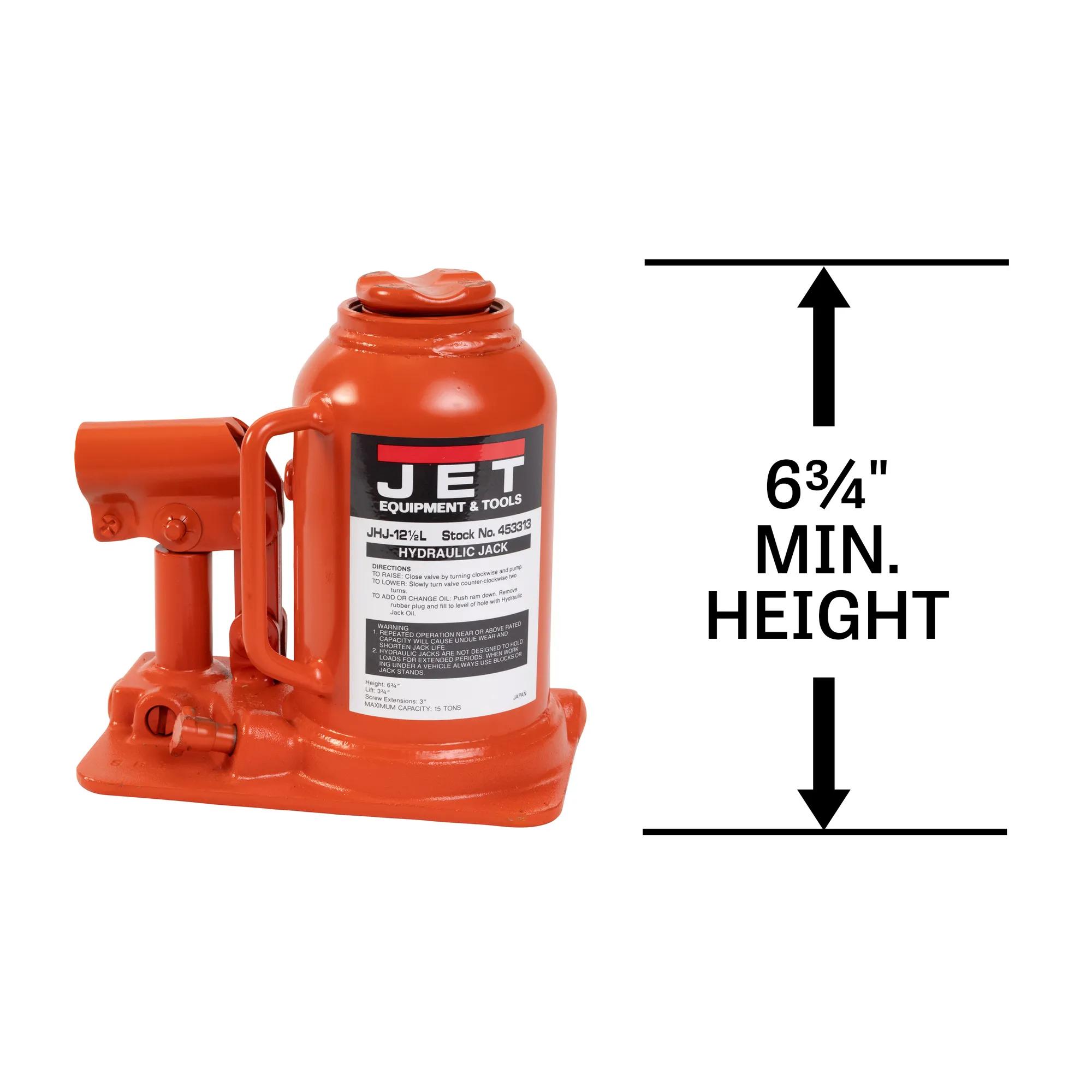

| Minimum Height (In.) | 6-3/4 |
| Model Number | JHJ-12 1/2L |
| Piston Height (In.) | 3-3/4 |
| Piston Lift (In.) | 3-3/4 |
| Prop 65 | Cancer |
| Warranty | 2 Year |
| Weight (Lbs.) | 15 |
| Gross Weight | 14.15 |
| Net weight | 12.0 |
